XA9523
2x16W Stereo / 1x20W Mono Class-D Audio Amplifier 2x16W Stereo / 1x20W Mono Class-D Audio Amplifier With Built-in Step-up Converter
产品描述
The XA9523 is a high efficiency stereo class-Daudio amplifier with built-in boost DC-DC converter.The loudspeaker driver can deliver stereo 15W/CH output power into 4Ω loudspeaker under 10%THD+N at two-cell Li-ion battery (8.4V).
XA9523 provides parallel BTL (Mono)application also, and it can deliver 19W into 4Ω loudspeaker at 8.4V supply voltage.
Output DC detection prevents speaker damage from long-time current stress. XA9523 provides superior EMC performance for filter-free application.The output short circuit and over temperature protection include auto-recovery feature.
主要特点
- Input voltage 2.9V~12V
- Adjustable boost converter output up to 14V
- Loudspeaker power @12V boost from 8.4V
- Stereo: 13W/CH into 4Ω @THD+N=1%
- Stereo: 15W/CH into 4Ω @ <10% THD+N
- Mono (PBTL):19W/CH into 4Ω @THD+N=10%
- Loudspeaker power @8V boost from 4.2V
- Stereo: 6W/CH into 4Ω @THD+N=1%
- Stereo: 7.5W/CH into 4Ω @ <10% THD+N
- Mono (PBTL): 8.7W/CH into 4Ω @THD+N=10%
- Differential inputs signal
- Fixed gain setting
- Internal oscillator
- Short-Circuit protection with auto recovery option
- Under-Voltage detection
- Over-Voltage protection
- Pop noise and click noise reduction
- Output DC detection for speaker protection
- Filter-Free operation
- Over temperature protection with auto recovery
- Superior EMC performance

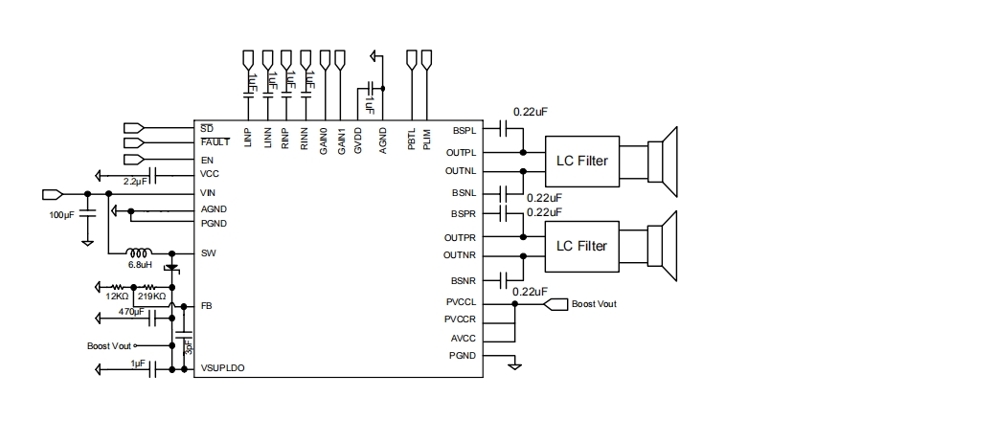

典型应用图
订购资讯
| Part Number | Gain | Package | Packing / MPQ | Comments |
|---|---|---|---|---|
| XA9523 ETBH | +26dB | E-TSSOP 28L | 50Units / Tube 100 Tubes / Small Box | Green |
