TCS5204
2.5V-5.5VIN,35VOUT, 1.2MHz Boost Regulator
产品描述
The TCS5204 series is a step-up converter designed for driving up to 10 white LEDs or up to 35V output voltage from a single cell Lithium-Ion battery. The device features integrated overvoltage protection and feedback voltage is regulated to 200mV to 250mV. Low feedback voltage helps to reduces power loss and improves efficiency. Customers can choose different FB voltages according to their application. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency. Internal soft start function can reduce the inrush current. Both SOT23-6 package type provides the best solution for PCB spacesaving and total BOM cost.
主要特点
- 2.5V to 5.5V Input Voltage
- Interal 37V Over Voltage Protection
- Up to 35V Output Voltage
- Internal Compensation
- 1.2MHz Fixed Switching Frequency
- 0.2/0.25V Feedback Voltage
- Internal 4A Switch Current Limit
- Support Analog and PWM Dimming Mode
- Thermal Shutdown
- Driving Up to 10 White LEDS
- Dimming with wide Frequency Range
- Available in SOT23-6 package

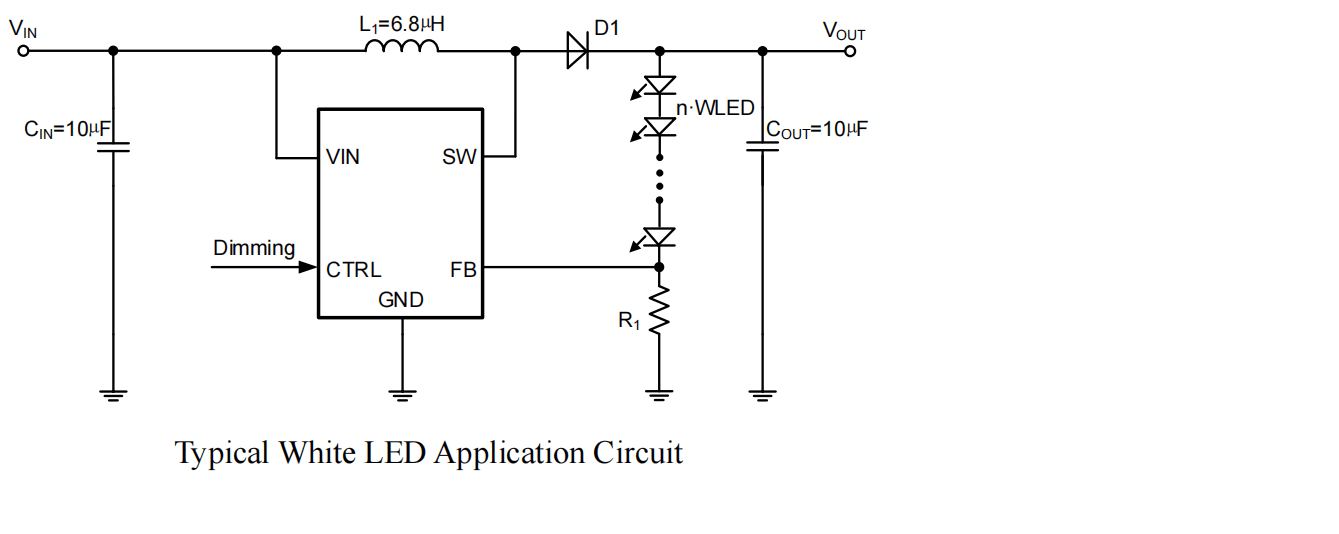

典型应用图
订购资讯
| Part Number | Description | Package | T/R Qty |
|---|---|---|---|
| TCS5204 F | TCS5204Boost, VIN 2.5-5.5V, VOUTVIN-35V, 1.2MHz, VFB0.2V, SOT23-6 | SOT23-6 | 3000PCS |
