TCS5116B
30V 1.2A Step -Down Dimmable LED Driver
产品描述
The TCS5116B is step-down regulator for dimmable LED driver, which is designed in continuous current mode for driving the high-brightness LEDs from a wide input voltage of 8.0V to 30V. The TCS5116B employs a hysteretic control scheme to regulate LED current. Moreover, the control scheme provides optimal loop stabilization and avery quick response time. The TCS5116Bimplements PWM and analog dimming together on the EN/DIM pin. The TCS5116B includes under-voltage lockout and thermal overload protection to prevent damage in the event of an output overload.
The TCS5116B requires a minimal number of readily available, external components and is available in a space saving SOT89-5 package.
主要特点
- Wide 8.0V to 30V Operating Input Range
- 1.2A Continuous Output Current
- Maximum 1MHz Switching Frequency
- Over Temperature Protection
- Inherent Open-Circuit LED Protection
- High-side Current Sense
- Hysteretic Control: No Compensation
- 400mΩ Low RDS(ON) Internal Power MOSFETs
- High efficiency (up to 97%)
- Adjustable Constant LED current
- PWM and Analog Dimming
- Typical 6% Output Current Accuracy
- Available in SOT89-5 Package
- -40°C to +85°C Temperature Range

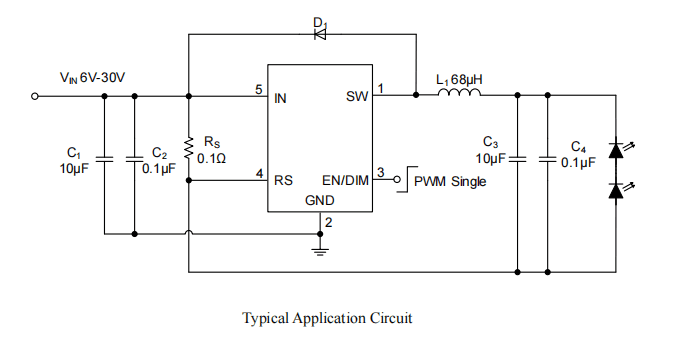

典型应用图
订购资讯
| Marking | Model | Description | Package | T/R Qty |
|---|---|---|---|---|
| 4115 NNNNN | TCS5116B_E | TCS5116B dimmable LED driver IC, 30V,1.2A, SOT89-5 | SOT89-5 | 3000PCS |
