TCS4226
28V 2A 500KHz ECOT PSM Sync Step-Down Regulator
产品描述
The ‘TCS4226 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal powerMOSFETs. It offers a very compact solution to provide a 2A continuous output current over a wide input supplyrange, with excellent load and line regulation. ECOT PSM control operation provides very fast transient responseand easy loop design as well as very tight output regulation.The ‘TCS4226 requires a minimal number of readily available, external components and is available in a space savingSOT23-6 package.
主要特点
- Wide 4.5V to 28V Operating Input Range
- 2A Continuous Output Current
- 500KHz Switching Frequency
- ECOT PSM Mode Control with Fast Transient
- Response
- Built-in Over Current Limit
- Built-in Over Voltage Protection
- PFM Mode for High Efficiency in Light Load
- 100mΩ/50mΩ Low RDS(ON) Internal Power
- MOSFETs
- Internal Soft-Start
- No Schottky Diode Required
- Short Protection with Hiccup-Mode
- Integrated internal compensation
- Thermal Shutdown
- Available in SOT23-6 Package
- -40°C to +85°C Temperature Range
- Output Adjustable from 0.6V

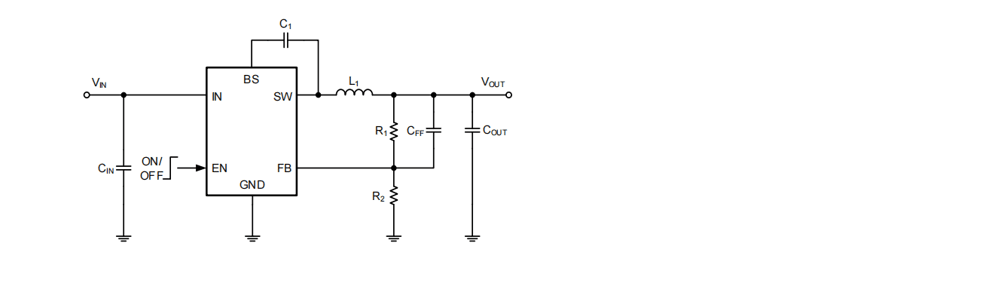

典型应用图
