XA9221D
10-W Inductor Free Stereo Audio Amplifier with Low EMI
产品描述
The XA9221D is a high efficiency 2 channel bridged-tied load (BTL) Class-D audio power amplifier, driving stereo speakers at up to 10W/CH with 6Ω or 8Ω Load. The XA9221D features a differential input architecture offering improved noise immunity over a single-ended (SE) input amplifier.
Advanced EMI Suppression Technology with Spread Spectrum Control enables the use of inexpensive ferrite bead filters at the outputs while meeting EMC requirements for system cost reduction.
XA9221D is not only fully protected against shortsand overload, an adjustable power limiter and a DC detection circuit for protection of the connected speakers. The DC detect and Pin to-Pin, Pin-to-Ground and Pin-to-Power Short Circuit protection circuit protect the speakers from output DC and pin shorts caused in production. The short circuit protection and thermal protection includes an auto recovery feature.
XA9221D is available in thermally efficient 28-pin ETSSOP package and will be able to output full power on a 2-layer PCB.
主要特点
- Wide Supply Voltage: 4.5V to 14.5V
- Enhanced Modulation Scheme Reduces EMI Emission
- Loudspeaker power from 12V supply
- BTL Mode: 8W/CH into 8Ω@1% THD+N
- BTL Mode: 10W/CH into 6Ω@<1% THD+N
- BTL Mode: 12W/CH into 4Ω@<1% THD+N
- PBTL Mode: 16W/CH into 4Ω@1% THD+N
- Loudspeaker power from 12V supply
- BTL Mode: 10W/CH into 8Ω@10% THD+N
- BTL Mode: 13W/CH into 6Ω@10% THD+N
- BTL Mode: 15W/CH into 4Ω@10% THD+N
- PBTL Mode: 20W/CH into 4Ω@10% THD+N
- Differential Inputs or Single-Ended input
- Speaker Protection Circuitry
- 26-dB Fixed Gain
- Power Limit Function
- Thermal and Short-Circuit Protection
- 28-pin ETSSOP Package with Thermal Pad
- RoHS compliant and 100% lead(Pb)-free Halogen-Free

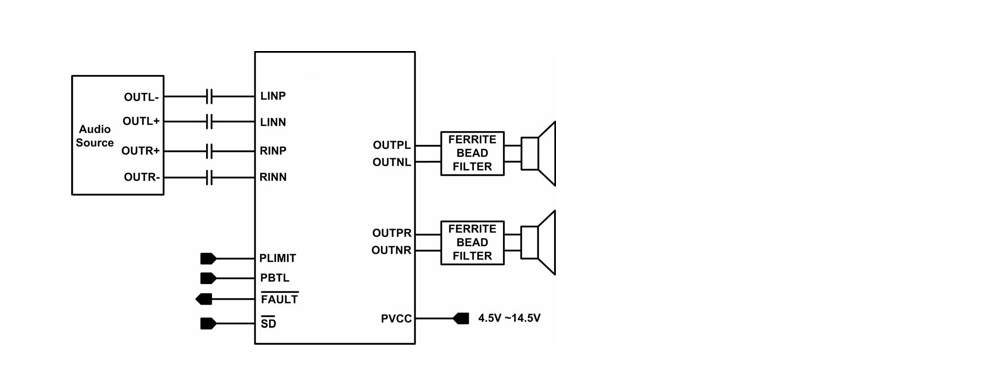

典型应用图
订购资讯
| Order Part Number | Package Type | Marking | Quantity/ Reel | Operating Temperature Range |
|---|---|---|---|---|
| XA9221D ETBH | ETSSOP-28 | XA9221D | 2500 | -40“C to +85°C |
