XA5312
High Performance PWM Controller
产品描述
The XA5312 is a DC-DC converter with Current-Mode control and three optional operation PWM frequencies. Low 0.21V feedback voltage, Over Voltage Protection, Over Current Protection,Schottky diode open/short protection and inductor-shorted protection make XA5312 to be an ideal controller for LED backlight driver.
Internal soft start function can avoid inrush current happened in the start-up period. Additional Over-Temperature-Protection and UVLO make system more reliable. CMOS process greatly reduces the operating current when comparing to similar products.
主要特点
- Current mode control and fixed frequency peration
- 8V ~ 28V operation voltage (Note 1)
- Internal minimum off time
- Internal soft-start
- Over voltage protection, OVP
- Load short protection, LSP
- Schottky short protection, SSP
- Schottky open protection
- LED cathode short protection, LCSP
- Over temperature protection, OTP
- Inductor short protection
- Internal under voltage lock out, UVLO
- Totem pole output

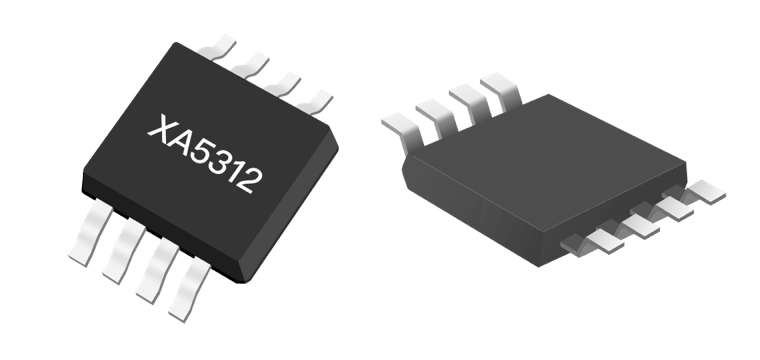

- SOP-8 package
典型应用图
订购资讯
| Part Number | Minimum packing quantity (pcs) | Package | Screen printing |
|---|---|---|---|
| XA5312-SH | 4000/DISC | SOP8 | XA5312xxxx |
