XA5018
3.3V~5V Input 24W Output Step-up DC/Dc Converter
产品描述
The XA5018 is a high frequency, high efficiency DC to DC converter with an integrated 12A, 25mΩ power switch capable of providing an output voltage up to 24V. The fixed 600KHz allows the useof small external inductions and capacitors and provides fast transient response. It integrates Soft start, Comp, only need few components outside.
It can output 6V 3.5A、9V 2A when 3.3V Battery input and output 6V 4.5A、9V 3A when 3.6V Battery input at good heat dissipation condition
主要特点
- 2.7V to 5.5V input voltage Range
- Efficiency up to 96%
- 24V Boost converter with 12A switchcurrent Limit
- 600KHz fixed Switching Frequency
- Integrated soft-startThermal Shutdown
- Under voltage Lockout
- Support external LDO auxiliary powersupply

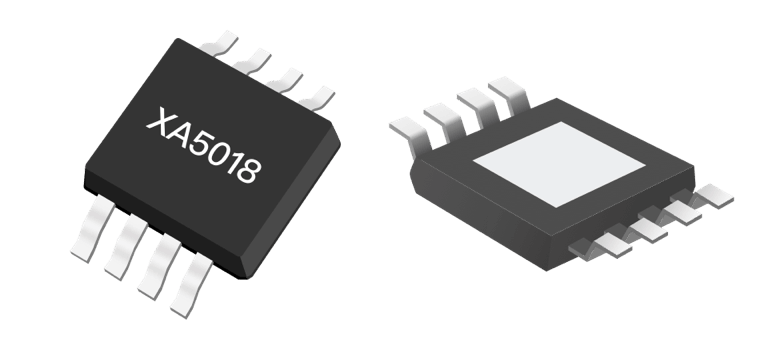

- 8-Pin SOP-PP Package

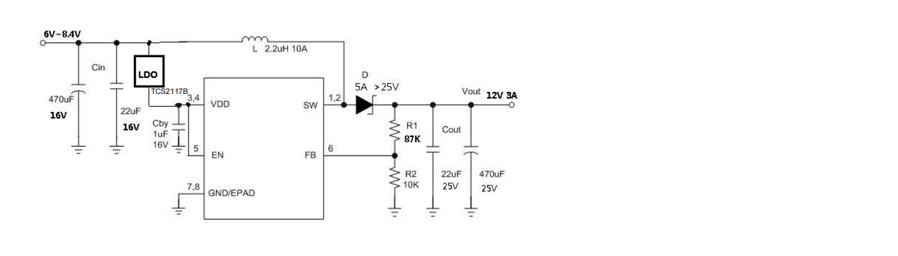

典型应用图
订购资讯
| Part Number | TEMP RANGE | SWICHINGFREQUENCY | OUTPUTVOLTAGE (V) | ILIM (A) | PACKAGE | PINS |
|---|---|---|---|---|---|---|
| XA5018-H | -40°C to 85-C | 600KHZ | ADJ | 12 | SOP-PP | 8 |
