TCS9208G
18V Output 800KHz Boost Regulator
产品描述
The TCS9208G is a highly integrated boost converter designed for applications requiring high voltage and highefliciency solution. The ‘TCS9208G integrates a 20 ypower switch, it can output up to 18V from input of’a Li+ batteror two cell alkaline batteries in series.
T’he TC$9208G operates with a switching frequency at800KHz. This allows the use of small external components.I’CS9208G has typical4A switch current limit. It has 1 .5mS built-in soft start time to minimize the inrush current. TheT’CS9208G also implements output short circuit protection, output over-voltage protection and thermal shutdown.The TCS9208G is available in a small SOT23-6 package.
主要特点
- 2.3V to 5.5V Input Voltage
- Up to 18V Output Voltage
- Integrated 60mΩ Power MOSFET
- 800KHz Fixed Switching Frequency
- Internal 4A Switch Current Limit
- Power Save Operation Mode at Light Load
- Internal 1.5mS Soft Start Time
- Up to 85% Efficiency@3.6V Input 12V Output
- Output Short Circuit Protection
- Output Over-Voltage Protection
- Thermal Shutdown Protection
- Output Adjustable from 0.6V
- -40°C to +85°C Temperature Range

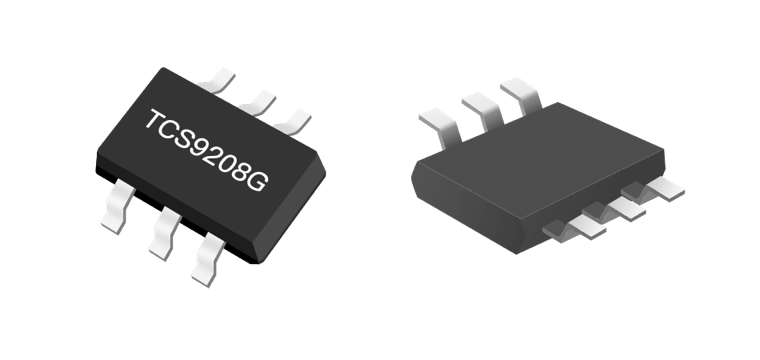

- Available in SOT23-6 Package
典型应用图
订购资讯
| Marking | Model | Description | Package | T/R Qty |
|---|---|---|---|---|
| KHYLL | TCS9208G | TCS9208GBoost, Wm 2.3-5.5V Vout Vin-18V 8O0KHz VFB 0.6V SOT23-6 | SOT23-6 | 3000PCS |
