TCS8320
PD SINK CONTROLLER
产品描述
The TCS8320 is a Power Delivery (PD) SlNK controller IC. The TcS8320 can request the maximum or specified voltage from the power supplies that complied with the Type-C PD protocol.The TCS8320 built in pull-low resistor on CC1 and Cc2 pins. When the TcS8320 connected tothe TYPE-C source device, the PD communication will be triggered and started automatically.The selected voltage will be requested and all related PD protocol will be completed.
主要特点
- Support USB Type-C Specification Release 1.3
- Support USB PD2.0 and PD3.0 communicationprotocol up to seven Power Object
- Operating voltage : 4.6V to 20V
- Package type :SOT23-6L

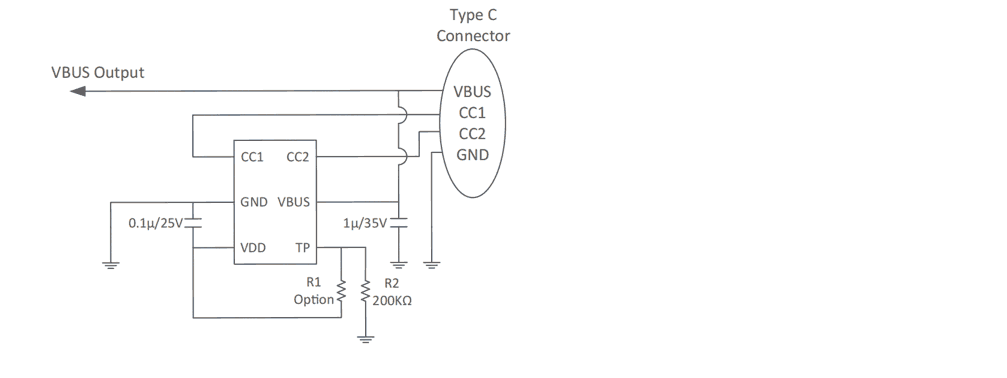

典型应用图
订购资讯
| Order Part Number | Operating Temperature | Package | MOQ |
|---|---|---|---|
| TCS8320_F | -20℃ ~ +85℃ | SOT-23-6L | 3000EA/Reel |
