TCS4336B
36V/3.5A 500KHz Synchronous Step-Down converter
产品描述
The TCS4336B is alow EMI signature, asynchronous, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 3.5A continuous current over a wide input supply range, with excellent load and line regulation.TCS4336B achieves low EMI signature with wellcontrolledswitching edges.Fault condition protection includesprogrammable-output over-voltage protection,Constant on time Mode, and thermalshutdown.
TCS4336B requires a minimal number of readilyavailablestandard external components. It isavailable in ESOP8 package.
主要特点
- Wide 4.5V to 36V Operating Input Range
- 3.5A Continuous Output Current
- 500KHz Switching Frequency
- Short Protection with Hiccup-Mode
- Built-in Over Current Limit
- Programmable Output Over-Voltage Protection
- DCM Mode for High Eficiency in Light Load
- Integrated internal Soft-Start
- 120/80mΩLowRpsoN Internal MOSFETS
- Output Adjustable fom 0.925V
- Low EMI Signature
- 100% Duty cycle
- Integrated internal compensation
- Thermal Shutdown
- Available in ESOP8 Package
- Constant on time
- ModeTCS4336B

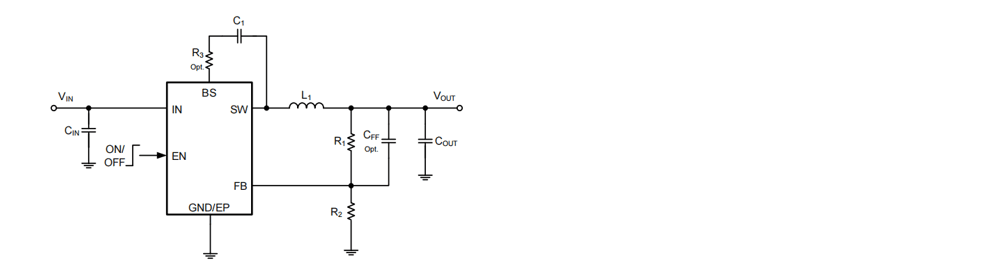

典型应用图
订购资讯
| Model | Description | Package | T/R Qty |
|---|---|---|---|
| TCS4336B-EH | TCS4336B Buck,4. 5-36V 3.54 500KHz VFB 0.925V DCM ESOP8 | ESOP8 | 3000PCS |
