TCS4216B
18V/2A Sync.Step-Down Converter
产品描述
The TCS4216B is a curent mode monolithic buckvoltage converter. Operating with an input rangeof 3.7V-18V,theTCS4216B delivers 2A ofcontinuous output current with two integratedN-Channel MOSFETs. At light loads, regulatorsoperate in low frequency to maintain highefficiency and low output ripple.The TCS4216B guarantees robustness with shortcircuit protection, thermal protection,currentrun-away protection, and input under voltagelockout.
The TCS4216B is available in a 6-pin TSOT23-6package, which provides a compactsolution with minimal external components
主要特点
- 3.7V to 18V operating input range2A output current
- Up to 95% efficiency
- High efficiency at light load
- 800kHz Switching frequency
- Input under voltage lockout
- Start-up current run-away protection
- Over current protection and Hiccup
- Thermal protection
- Available in TSOT23-6 package

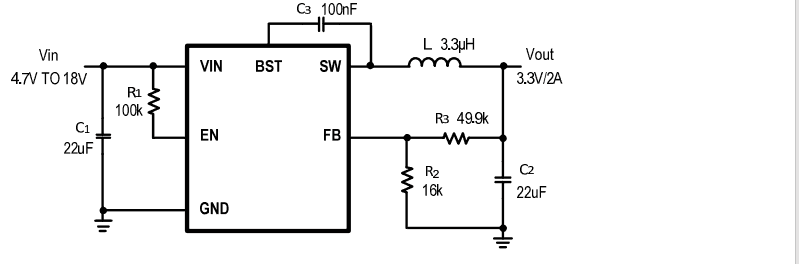

典型应用图
订购资讯
| Device | Package |
|---|---|
| TCS4216B F | TSOT23-6 |
