TCS3512

Programmable Dual Output LCD Bias for Smartphone and Tablets

产品描述

The TCS3512 generates power supply rails for active-matrix organic light emitting diode (AMOLED) displays. It includes a step-up DC-DC and an inverting DC-DC converter making it suitable for battery operated products.

The step-up converter is a high-accuracy power-efficiency250mA output regulator. It features an internal 0.5N-MOSFET, 0.6 P-MOSFET and 1.4MHz operation frequency allowing the use of small inductor and capacitors.The integrated synchronous rectifier allows the true shutdown of the outputs. An internal digital soft-start function controls inrush currents. The step-up converter output can be externally set 4V to 8V.

The inverting converter is a high-accuracy 250mA regulator. It features an internal 0.4 N-MOSFET, 0.5 P-MOSFET and 1.4MHz operation frequency allowing the use of small inductor and capacitors. Its -6V to -1V output efficiency up to 80% at 150mA. An internal digital soft-start function controls inrush currents.

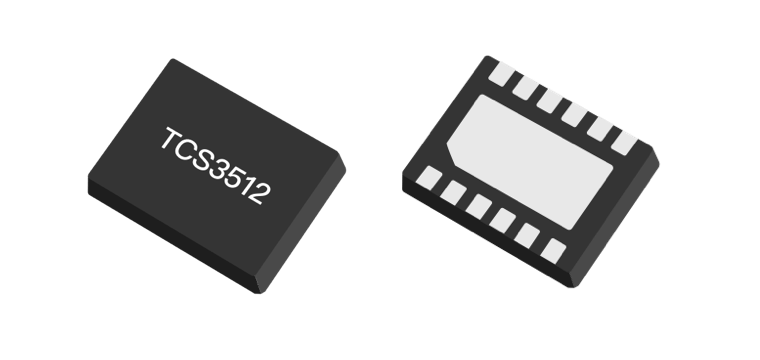

The TCS3512 is available in a small (3mm×3mm×0.6mm)12 pin thin TDFN package and operates over the -40ºC to +85ºC temperature range.

主要特点

  • Wide 2.7Vto5.5V Operating Input Range
  • Dual Output Regulator with Single Inductor
  • Programmable Output Voltage
  • Positive Output Voltage Range:
  • +4V to +6V (100mV/Step)
  • Negative Output Voltage Range:
  • -4V to -6V (100mV/Step)
  • ±1.5% Output Voltage Accuracy
  • Excellent Line Regulation
  • Advanced Power-Save Mode for Light Load
  • Support I2C Compatible Interface
  • Integrated Compensation and Feedback Circuits
  • 1μA Shut-Down Supply Current
  • Boost Current Mode Operation
  • Over Current Protection
  • Internal Soft-Start Prevents Inrush Current
  • Under Voltage Lock Out
  • Thermal Shutdown
  • Available in an 15-Ball WLCSP
  • -40℃ to +85℃ Operating
  •  Temperature Range

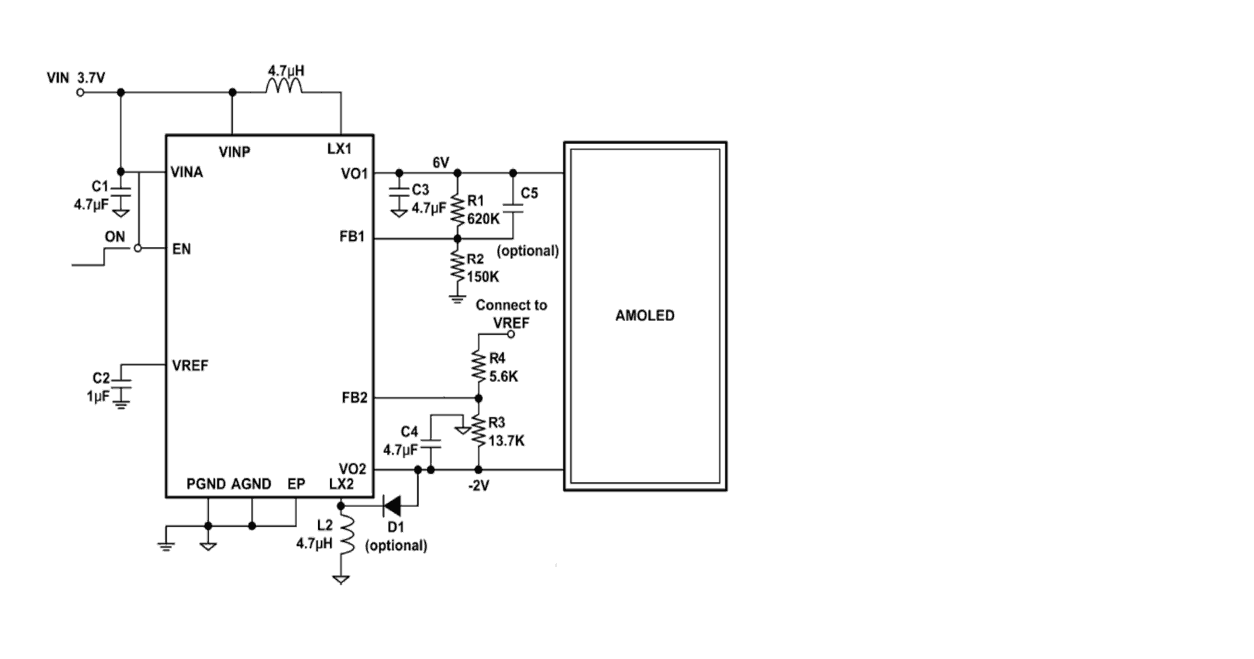

典型应用图

Product Application Image

订购资讯

Part NumberDriver CapabilityPackage TypePackageQtyTemperatureECOPlanLead/BallFinish
TCS3511-WO+1120mA15-Ball WLCSP3000pcs-40~85CGreenSn/Ag/Cu
