TCS1488
600KHz,16V，2A Synchronous Step-Down Converter
产品描述
The TCS1488is a fully integrated, high– efficiency 2A synchronous rectified step-down converter. The TCS1488 operates at high efficiency over a wide output
current load range.
This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load.

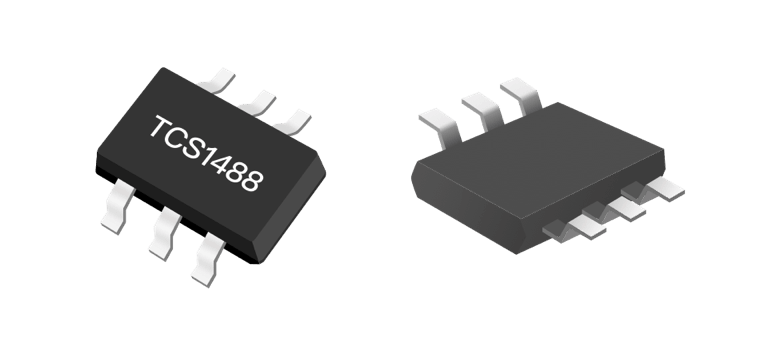

The TCS1488 requires a minimum number of readily available standard external components and is available in an 6-pin SOT23 ROHS compliant package.
主要特点
- High Efficiency: Up to 96%
- 600KHz Frequency Operation
- 2A Output Current
- No Schottky Diode Required
- 4.5V to 16V Input Voltage Range
- 0.6V Reference
- Slope Compensated Current Mode Control for
- Excellent Line and Load Transient Response
- Integrated internal compensation
- Stable with Low ESR Ceramic Output
- Capacitors
- Over Current Protection with Hiccup-Mode
- Thermal Shutdown
- Inrush Current Limit and Soft Start
- Available in SOT23-6 Package
- -40°C to +85°C Temperature Range
典型应用图
